// Time-of-Flight Secondary Ion Mass Spectometry (ToF-SIMS)

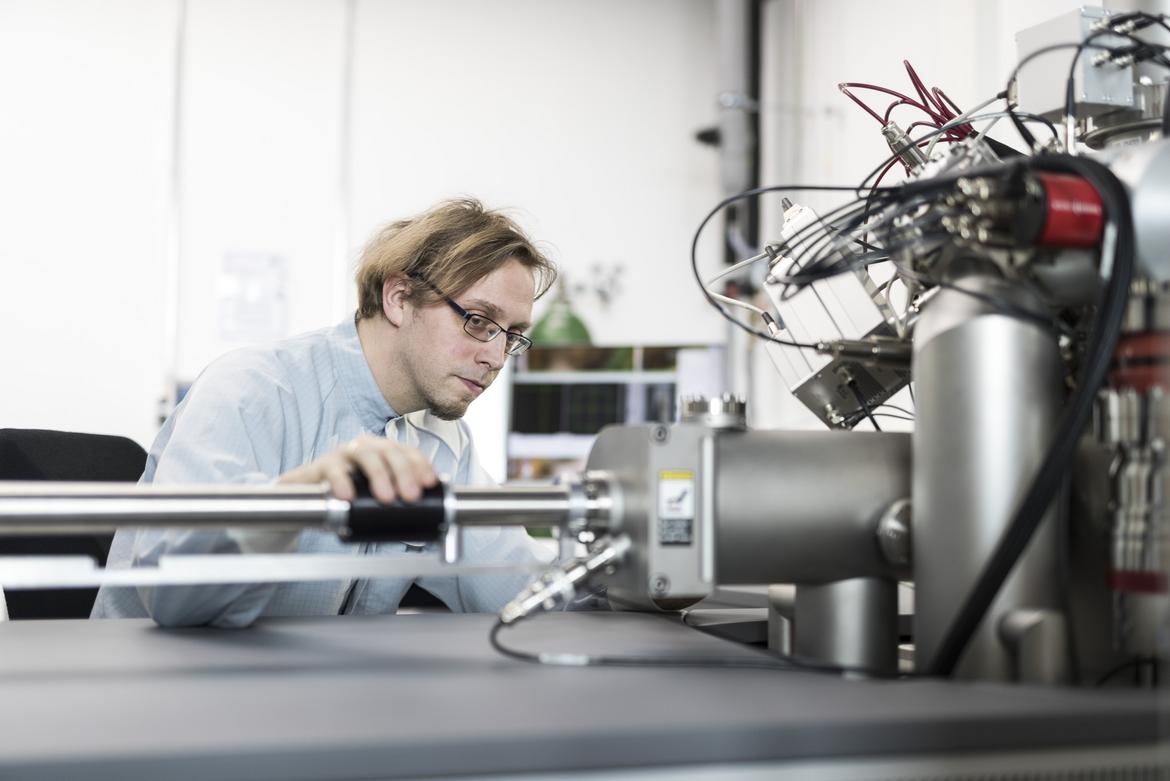

The time-of-flight mass spectrometry of secondary ions is a materials characterization method which delivers laterally resolved depth profiles. Our TOF.SIMS 5 device made by IONTOF can be used to detect all elements of the periodic table.
Detection of trace elements up to a concentration of few ppm
Mass resolution of 12,000 which allows for a differentiation between O2 and S
3D depth profiling in the micrometer range with a maximal lateral resolution of 200 nm (matrix elements)
Quantification of the depth profiles via reference samples
Detection of entire organic modules or their fractions, masses of up to 10,000 u
Measurement of non-conductive materials by way of charge compensation
Measurement of mobile ions with a chilled sample holder and soft sputtering sources
Handling of samples which are sensitive to air or water
Die Flugzeitmassenspektrometrie sekundärer Ionen ist eine Analysemethode, die lateral aufgelöste Tiefenprofile ermöglicht. Mit unserem Gerät TOF.SIMS 5 der Fa. IONTOF können alle Elemente des Periodensystems detektiert werden.
Erfassen von Spurenelementen bis zu einer Konzentration von wenigen ppm
Massenauflösung von 12.000, was eine Unterscheidung von O2 zu S ermöglicht
3D-Tiefenprofilierung im Mikrometerbereich mit einer maximalen lateralen Auflösung von 200 nm (Matrixelemente)
Quantifizierung der Tiefenprofile über Referenzproben
Detektion ganzer organischer Moleküle oder ihrer Fraktionen, Massen bis 10.000 u
Messung isolierender Materialien über Ladungskompensation
Messung mobiler Ionen durch gekühlten Probenhalter und sanfte Sputterquellen
Probenhandling von luft- oder wasserempfindlichen Proben
Mehr Informationen zu unseren Methoden der Materialcharakterisierung finden Sie hier.

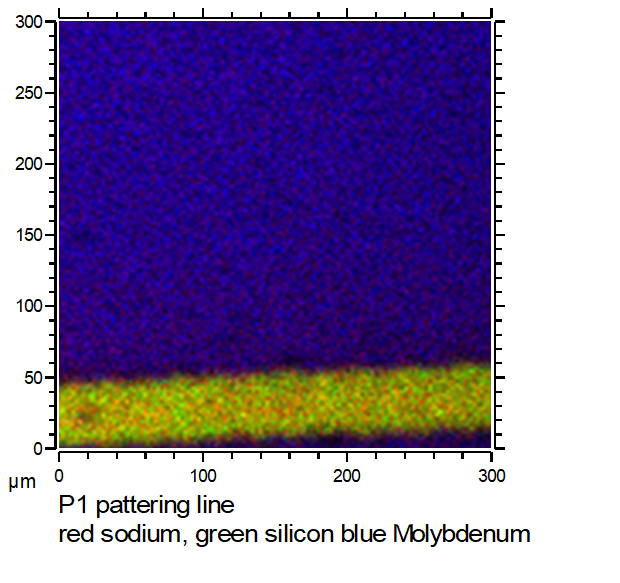

Image of a P1 pattering line; blue: molybdenum; red and green sodium and silicon from excavated glass
